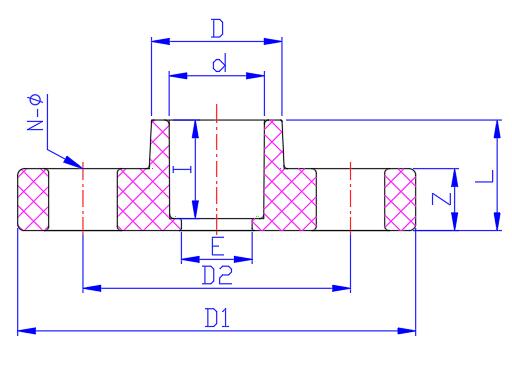

CPVC ANSI 一体法兰PRODUCT CENTER
Size | D | d | I | E | Z | L | D1 | D2 | N-Φ |
1/2" | 29.5 | 21.54 | 22 | 16 | 14 | 25 | 90 | 60.5 | 4-16 |
3/4" | 35 | 26.87 | 25.5 | 21 | 15 | 28.5 | 100 | 70 | 4-16 |
1" | 43 | 33.65 | 28.5 | 27 | 16 | 32 | 110 | 79.5 | 4-16 |
1 | 52.5 | 42.42 | 32 | 35 | 17 | 35 | 120 | 89 | 4-16 |
1 | 60 | 48.56 | 37 | 43 | 18 | 40 | 130 | 98.5 | 4-16 |
2" | 74 | 60.63 | 38 | 55 | 20 | 44 | 152 | 120.5 | 4-18 |
2 | 89 | 73.38 | 47 | 67 | 22 | 55 | 180 | 139.7 | 4-19 |
3" | 106 | 89.31 | 50 | 82 | 24 | 60 | 192 | 152.4 | 4-19 |
4" | 132 | 114.76 | 60 | 102 | 26 | 70 | 230 | 190.5 | 8-19 |
5" | 162 | 141.81 | 70 | 130 | 28 | 80 | 260 | 215.9 | 8-22 |
6" | 191 | 168.83 | 80 | 156 | 32 | 90 | 285 | 241.3 | 8-22 |
8" | 246 | 219.84 | 105 | 204 | 35 | 118 | 345 | 298.5 | 8-22 |
单位为毫米 | |||||||||
"
"
